4281



Gauss supplied only these two cabinet volumes for this speaker.  I suppose there isn't enough difference between 2 ft^3 and 4 ft^3 to warrant a cabinet of 3 ft^3 and I further suppose that going larger than 4 ft^3 jeopardizes the speaker.  Keep in mind, these speakers were designed for professional use meaning they'll have to handle much more power than if used domestically.

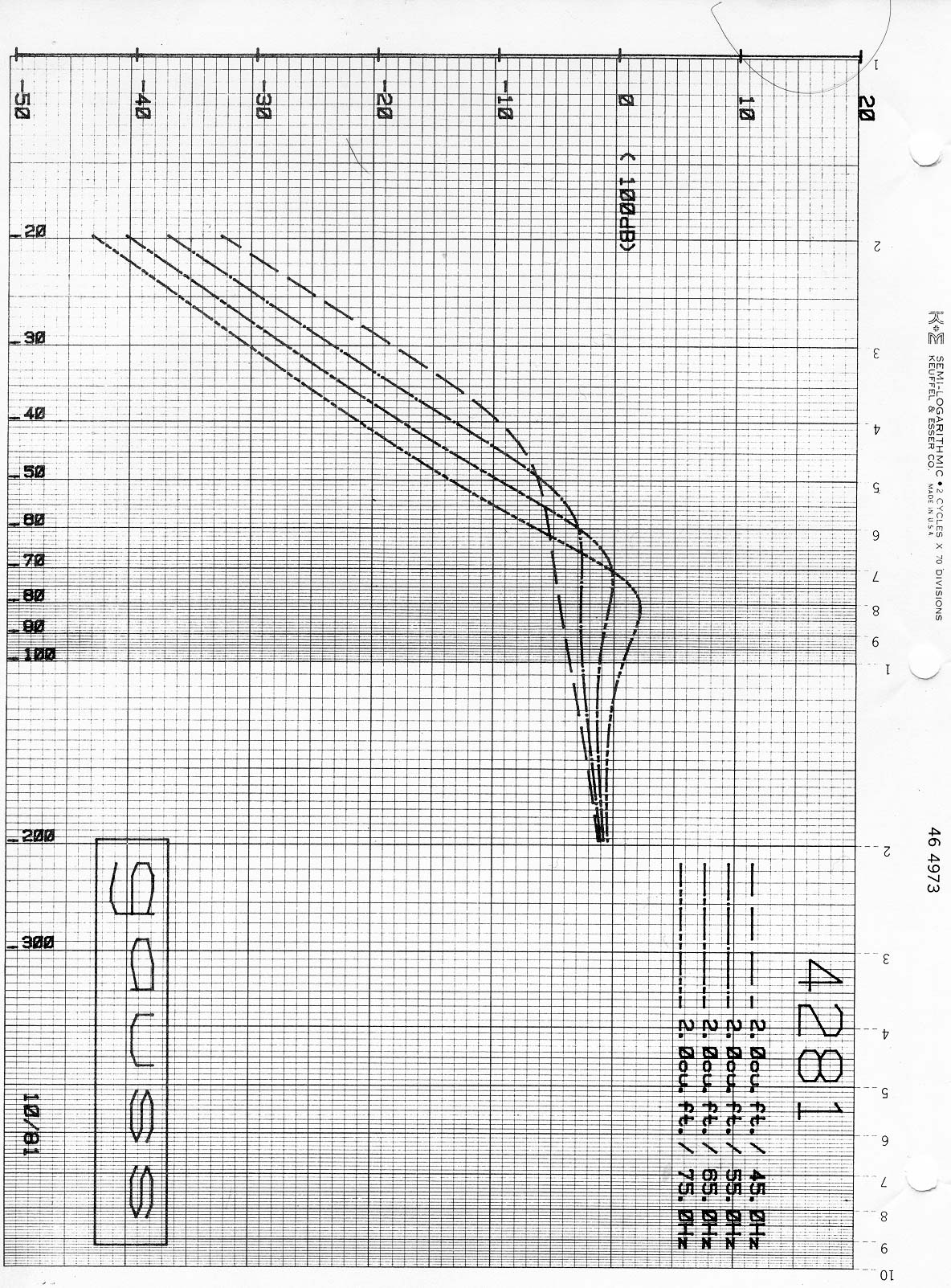

2 cubic feet enclosure response curves

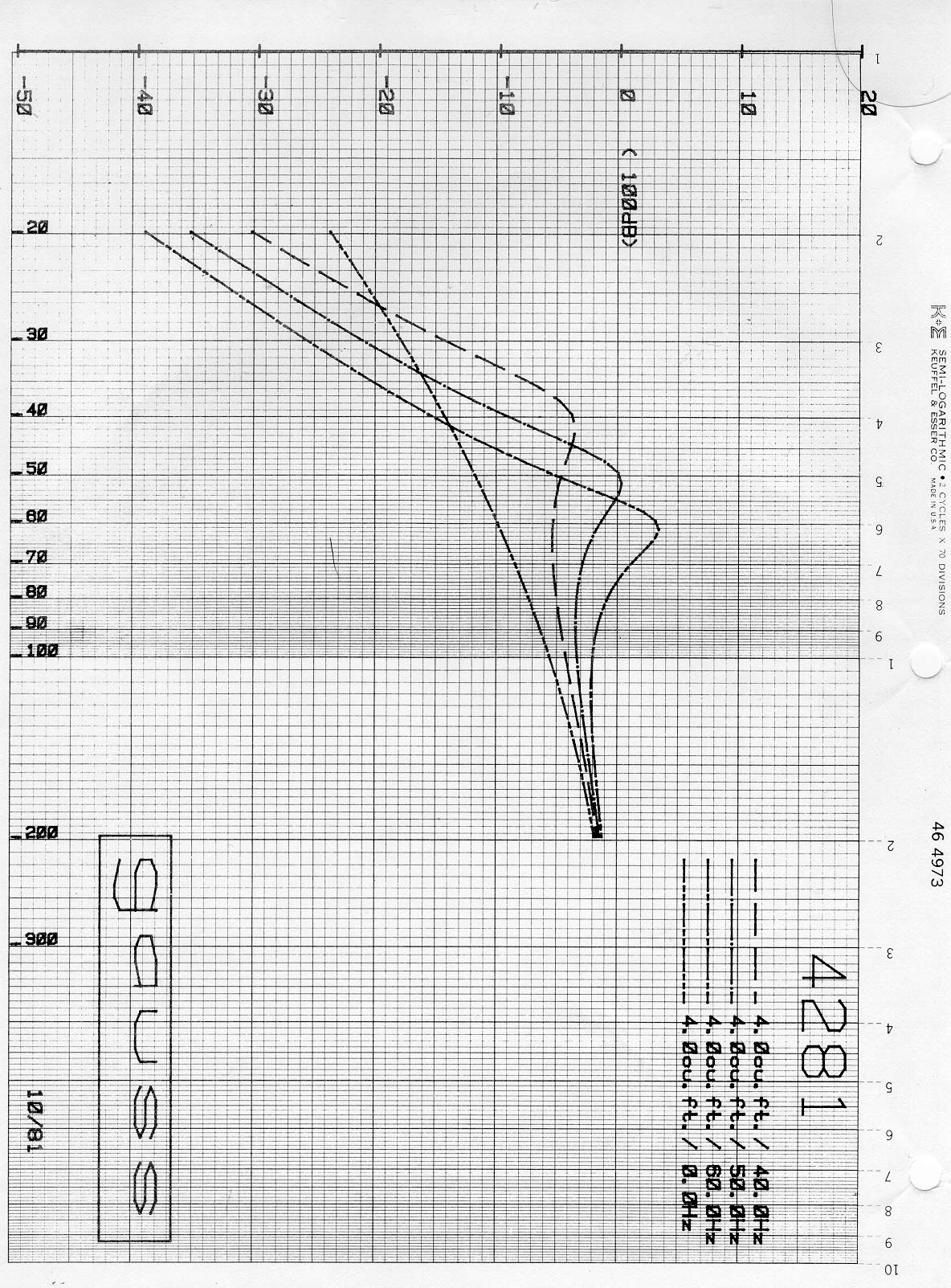

4 cubic feet enclosure response curves



Vent dimensions for 2 ft^3 enclosure

Vent dimensions for 2.5 ft^3 enclosure

Vent dimensions for 3 ft^3 enclosure

Vent dimensions for 4 ft^3 enclosure

Maximum power vent for 12 inch Gauss speakers
